If you’ve been hearing some strange clunking noises from the front end of your vehicle, especially when going over bumps, the sway bar link might be the culprit. In this blog post, we’ll walk through the detailed process of replacing the front sway bar link on a 2004 Honda Accord. This guide will take you step by step, so you can handle this repair yourself with confidence.
Symptoms of a Failing Sway Bar Link
Before diving into the repair, let’s look at the symptoms that led to this replacement:
- Clunking noise: In this case, there was a distinct clunk coming from the front passenger’s side, especially during turns or over bumps.
- Visual inspection: A quick look underneath the vehicle confirmed that the front sway bar link had failed.
Interestingly, in my case, even with the failure, the vehicle didn’t show signs of instability on the road, which was odd. Anyway, it’s always a good idea to address issues like this sooner rather than later.
Tools You’ll Need
To tackle this job, here’s a list of tools you’ll need:
- Jack and jack stands: For raising and securing the vehicle.
- 14mm socket or wrench: To remove and install the sway bar link nuts.
- 5mm hex socket: To hold the stud in place while loosening or tightening the nuts.
- Vise grip: For extra grip if the hex socket is rusted out or stripped.
- Angle grinder: (Optional, but sometimes necessary) for cutting off a stubborn sway bar link.
- Sway bar links: 2003-2007 Honda Accord.
- Torque Wrench: Used to torque the fastening nuts to the proper tightness.
Step 1: Jack Up the Car and Secure It
Start by raising the front of your vehicle. Use a jack to lift the car and position jack stands under the vehicle to keep it safely elevated. Always ensure the vehicle is stable before proceeding.
Step 2: Remove the Wheel
Once the car is securely on jack stands, remove the front wheel on the side where you’ll be working. This gives you clear access to the sway bar link.
Step 3: Loosen the 14mm Nut on the Sway Bar Link
The sway bar link is held on by a 14mm nut at both the top and bottom. Use a 14mm socket or wrench to begin loosening the nut. On the opposite side of the stud, there is a 5mm hex hole designed to hold the stud in place while you turn the nut. This prevents the stud from spinning.
However, in many cases, especially on older vehicles, rust and corrosion may have taken their toll on the hex fitting. If this happens, don’t worry—there are other ways to get the job done.
Step 4: Use a Vise Grip if the Hex Fitting is Stripped

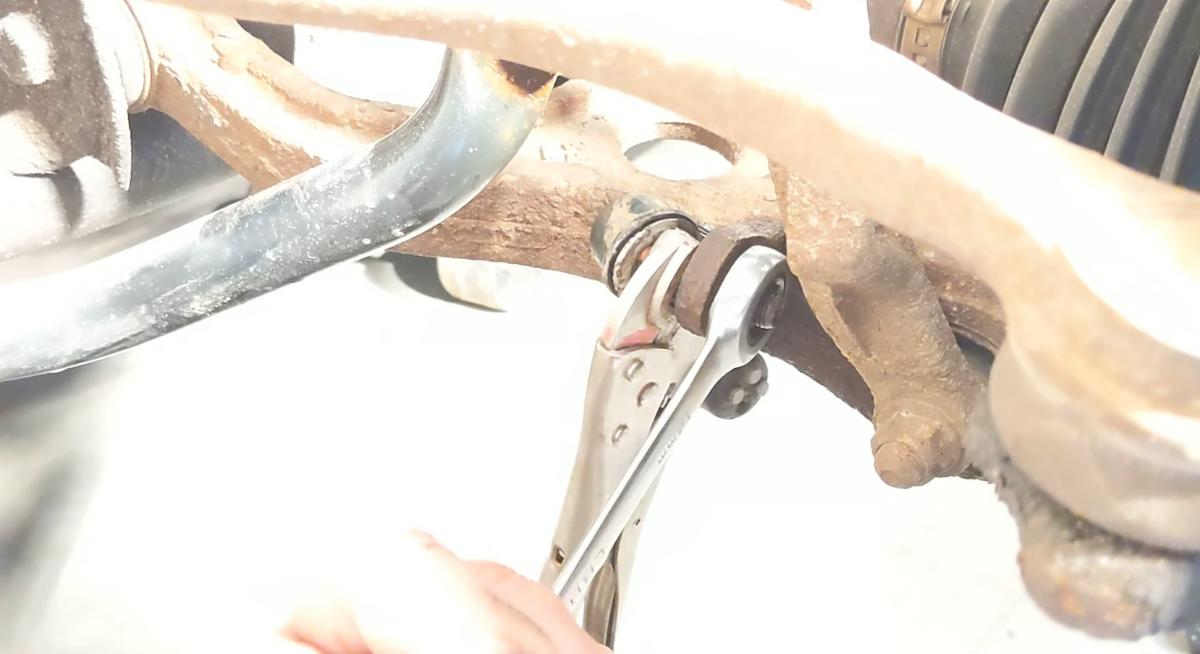

If the hex socket is rusted beyond use (as was the case for me), you can hold the inner shaft with a vise grip. Place the vise grip on the stud before attempting to loosen the nut. This technique helps keep the stud from spinning while you loosen the nut.
Pro Tip: When you notice rust or corrosion, it’s a good idea to start with the vise grip immediately. Let the rust work to your advantage by holding the shaft in place!
Step 5: Cutting off the Sway Bar Link with an Angle Grinder (If Needed)
Sometimes, even the vise grip won’t work, and you’ll need to resort to more aggressive measures. In this case, an angle grinder came in handy. If you find yourself in the same situation, carefully use the grinder to cut through the old sway bar link.
For the bottom link, grinding some flat spots for the vise grip to hold onto can also be helpful if the nut is still giving you trouble.
Here is the old (failed) sway bar link removed.
Step 6: Grease the New Sway Bar Links
If your new sway bar links come with grease fittings, don’t forget to grease them. Regularly greasing these fittings will extend the lifespan of the links, ensuring they stay in good working condition for years to come.
Step 7: Install the New Sway Bar Link
Now that the old sway bar link is out of the way, it’s time to install the new one. In this case, I opted for sway bar links with grease fittings, which should extend their lifespan.
- Insert the new sway bar link into the same position as the old one. You may need to use a pry bar to line up the holes properly, as the links can be quite short.
- With the new link in place, secure the studs using a 14mm wrench. Make sure the link is properly seated before tightening everything down.
Step 8: Torque the Nuts
Now it’s time to torque the nuts to the proper specifications:
- Top nut: Torque to 28 ft-lbs.
- Bottom nut: Torque to 22 ft-lbs.
Be sure to use a torque wrench to ensure everything is tightened to the correct specifications.
Step 9: Reinstall the Wheel
Once everything is tightened and greased, reinstall the wheel and hand-tighten the lug nuts. Then lower the vehicle back to the ground and fully torque the lug nuts to the manufacturer’s specifications (80 ft-lbs (108 Nm)).
Repeat the Process for the Other Side
The sway bar links work in pairs, so be sure to repeat this process on the opposite side of the vehicle for a balanced repair.
Conclusion
Replacing the sway bar links on a 2004 Honda Accord isn’t an overly complicated job, but as you’ve seen, things don’t always go perfectly. Having the right tools on hand, like a vise grip and an angle grinder, can save you a lot of frustration if things don’t go smoothly.
Following these steps will help ensure a smooth, safe repair, and you’ll eliminate those annoying clunking noises. If this guide helped you out, don’t forget to share it or leave a comment! Keep an eye out for more DIY automotive guides, and thanks for reading!
Frequently Asked Questions
Q: How long do sway bar links typically last?
A: Sway bar links can last anywhere from 50,000 to 100,000 miles, depending on driving conditions. Replacing them when they fail can significantly improve ride quality and reduce noise.
Q: Why use sway bar links with grease fittings?
A: Grease fittings allow you to regularly lubricate the sway bar links, which can help them last longer compared to sealed, non-serviceable links.
Q: Can I drive with a bad sway bar link?
A: While driving with a bad sway bar link is possible, it’s not recommended. It is a safety issue, and it can affect handling and cause additional wear to suspension components.
By following these instructions, you can confidently tackle this repair and improve your vehicle’s performance.
