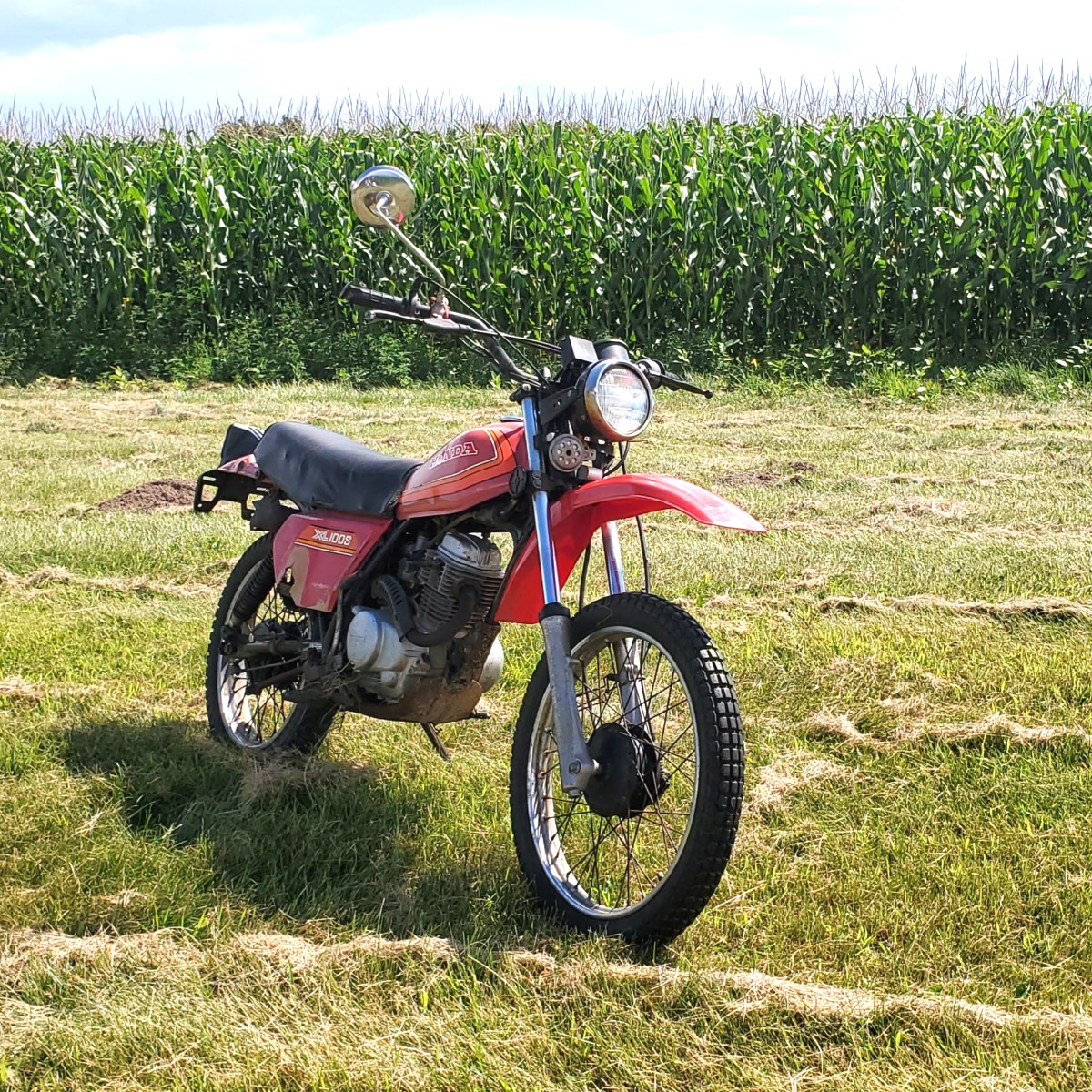

Honda XL100S Specifications
The following table lists the specifications for the 1980 Honda XL100S.
Note: PracticalMechanic.com is reader-supported. If you buy through links on our site, we may earn an affiliate commission – at no cost to you. Thank you for your help keeping this site active.
| Honda XL100S Specifications | ||
| Specification | English | Metric |
| Dimensions | ||
| Length | 75.6 in. | 1920 mm |
| Width | 31.7 in. | 805 mm |
| Height | 41.7 in. | 1060 mm |
| Wheel Base | 48.2 in. | 1225 mm |
| Weight | ||
| Dry Weight | 176.3 lbs | 80.0 kg |
| Capacities | ||
| Passengers | 1 driver, 1 pass. | |
| Engine Oil | GN4 10W-40 | |
| Engine Oil | 1.1 US qt. | 1.0 liter |
| Fuel Tank | 1.2 US gal. | 4.5 liter |
| Reserve Fuel | 0.3 US gal. | 1.2 liter |
| Engine | ||
| Bore and Stroke | 2.09 x 1.77 in. | 53 x 45 mm |
| Compression Ratio | 9.4:1 | |
| Displacement | 6.1 cu-in. | 99.2 cc |
| Contact Breaker Point Gap | 0.012 – 0.016 in. | 0.3 – 0.4 mm |
| Spark Plug Gap | 0.024 – 0.028 in. | 0.6 – 0.7 mm |
| Spark Plug | NGK C7HS | |
| Valve Tappet Clearance Intake | 0.002 in. | 0.05 mm |
| Valve Tappet Clearance Exhaust | 0.002 in. | 0.05 mm |
| Chassis and Suspension | ||
| Caster | 61 deg. | |
| Trail | 4.3 in. | 108 mm |
| Tire Size, Front | 2.50 – 19 (4PR) | |
| Tire Size, Rear | 3.00 – 16 (4PR) | |
| Power Transmission | ||
| Primary Reduction | 4.437 | |
| 1st Gear Ratio | 3.083 | |
| 2nd Gear Ratio | 1.882 | |
| 3rd Gear Ratio | 1.400 | |
| 4th Gear Ratio | 1.130 | |
| 5th Gear Ratio | 0.923 | |
| Final Reduction | 2.8 | |
| Electrical | ||
| Battery | 6 V – 4 AH | |
| Generator | AC Generator |
